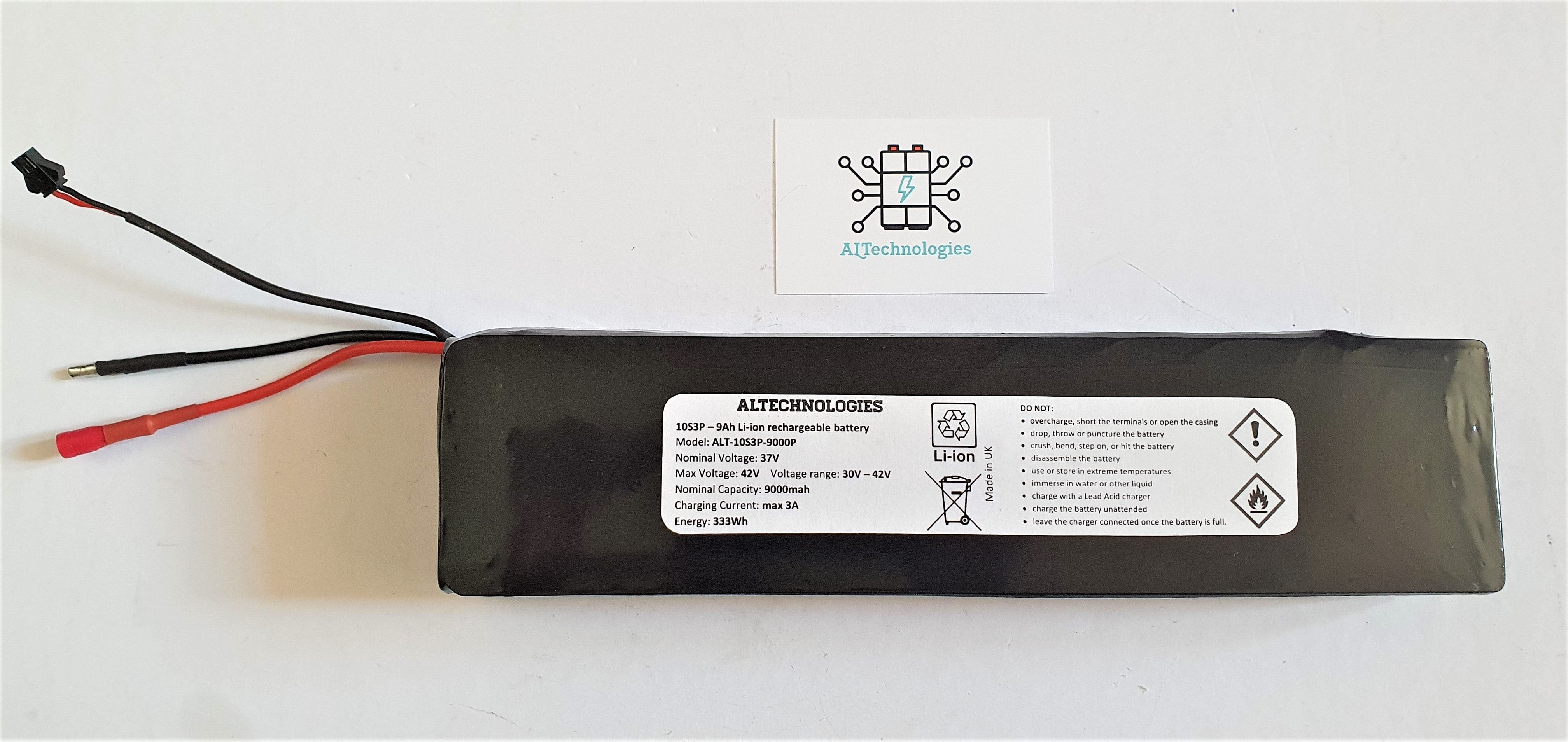

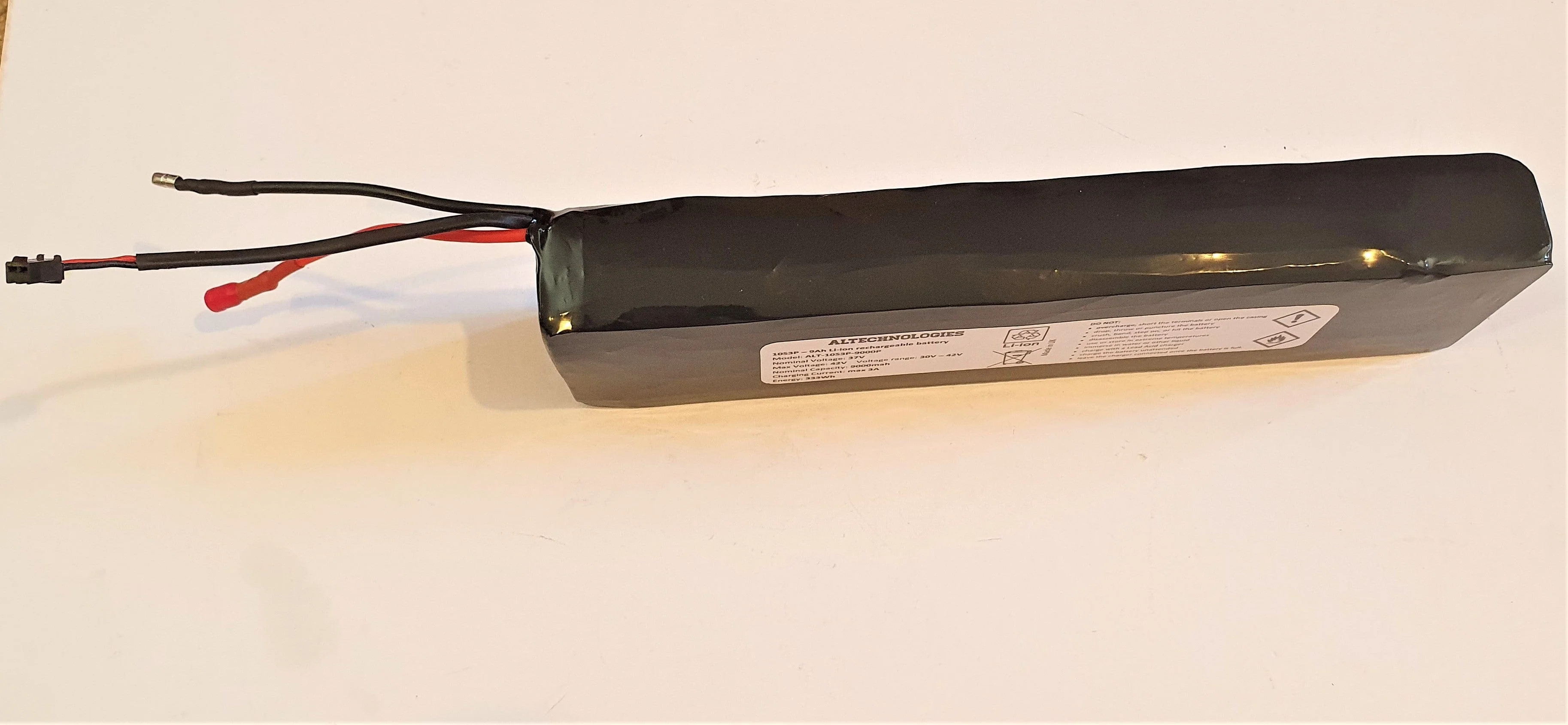

Fiido D1 D2 ebike 36V 7.5Ah replacement lithium battery li-ion

Fiido D1 D2 ebike 36V 7.5Ah replacement lithium battery li-ion

Specifications:

Model: ALT-10S3P-7500

Cell type: Samsung 25R - 2500mAh

Cell count: 30 pieces(10S3P)

Nominal voltage: 36V

Charge voltage: 42V

Nominal capacity: 7.5Ah/ 277.5Wh

BMS rated current: 30A (Max) discharge and 5A charge

BMS function: Overcharge, over-discharge, overcurrent, short circuit protection, temperature sensor.

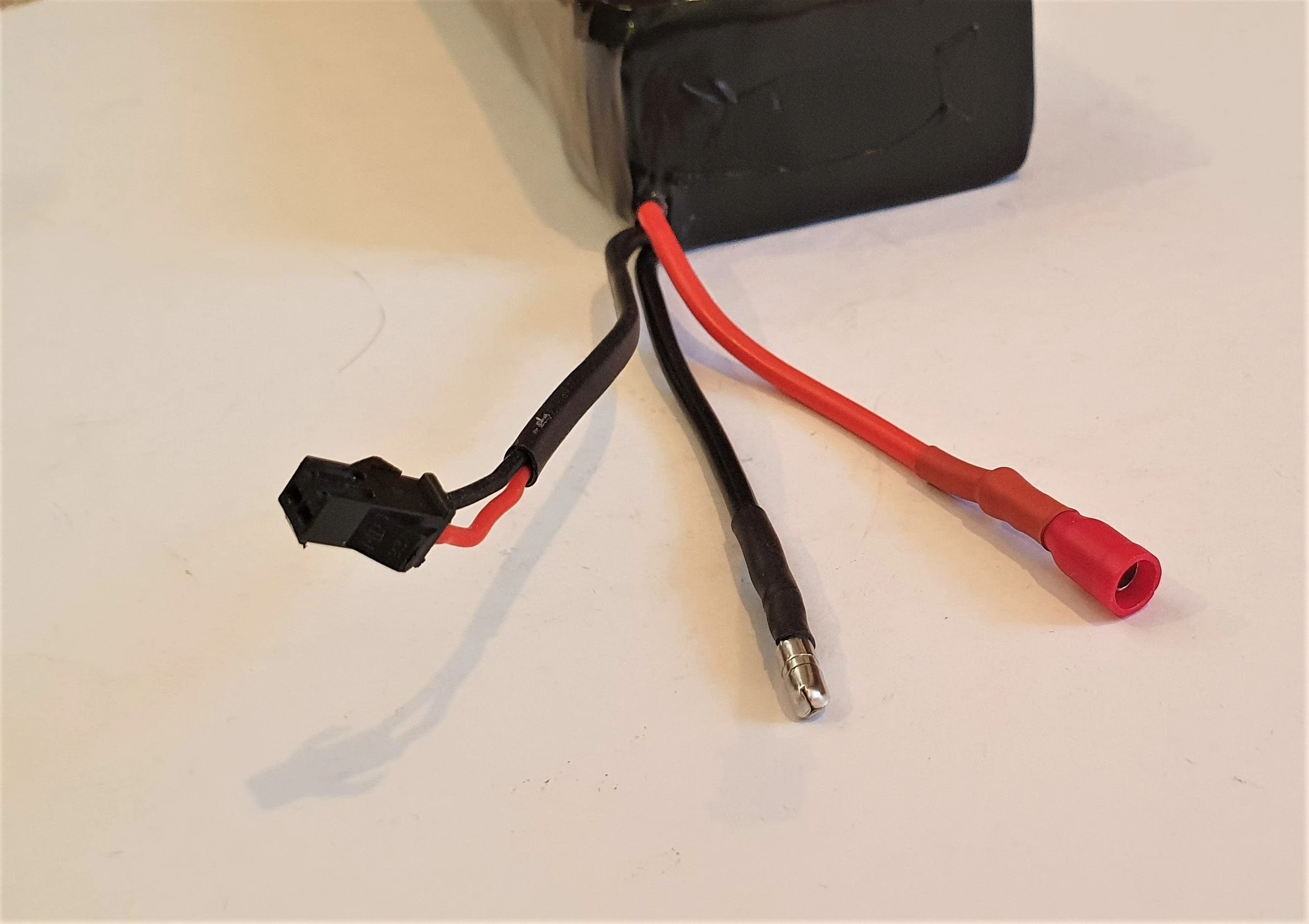

Connectors : SM2P is used for charging,


Connectors : 4mm bullet is used for discharging; optional XT60 or Deans connectors can be installed for better connection and current flow.

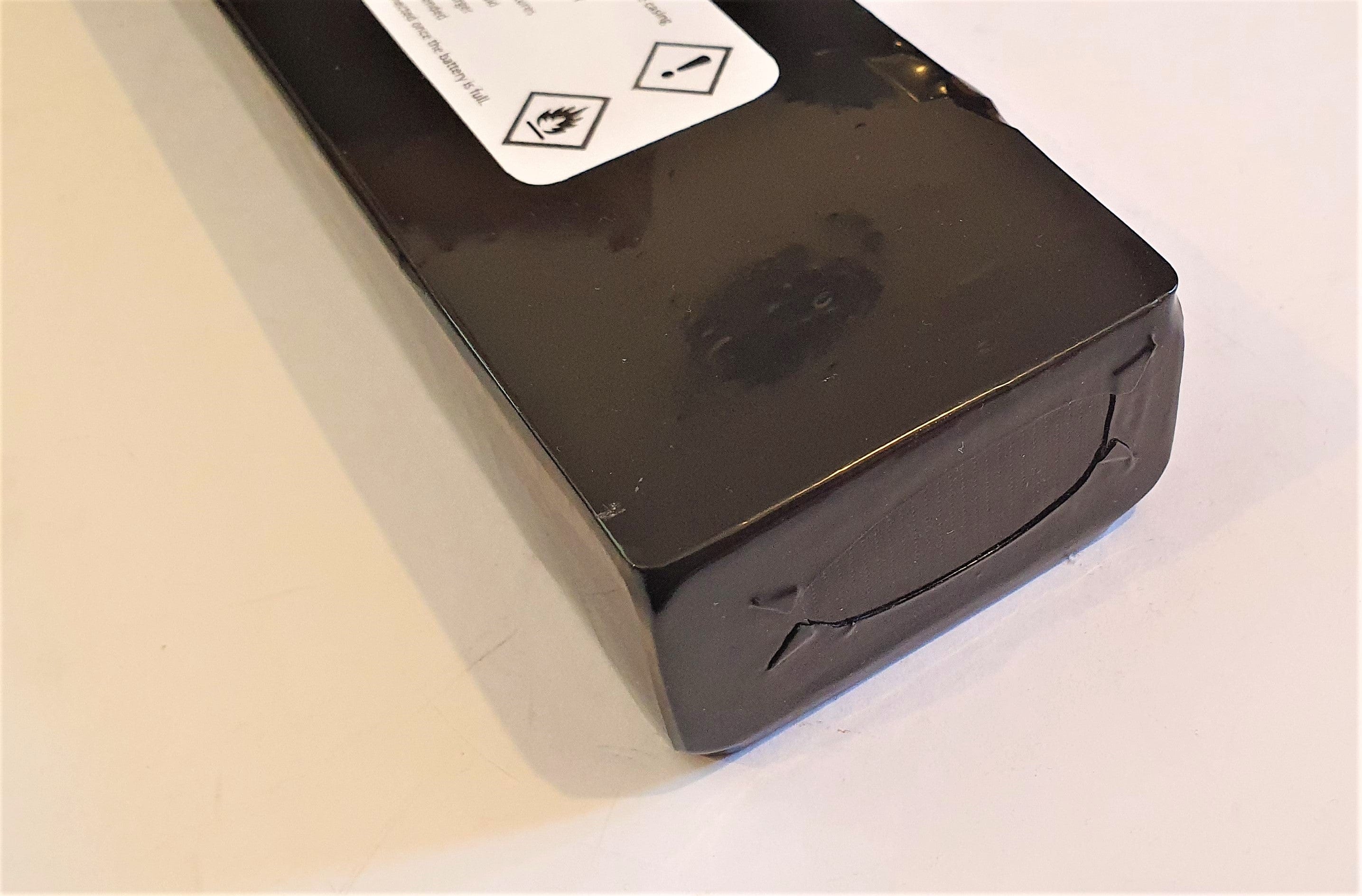

Package: heat shrinkable PVC, black

Output voltage range: 28V-42V

Discharge cut-off voltage: 28V

Charge cut-off voltage: 42V

Charge method: CC-CV

Max. Charge current: 3A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 500 - 1000 cycles

Size: 290 * 70 * 38 mm

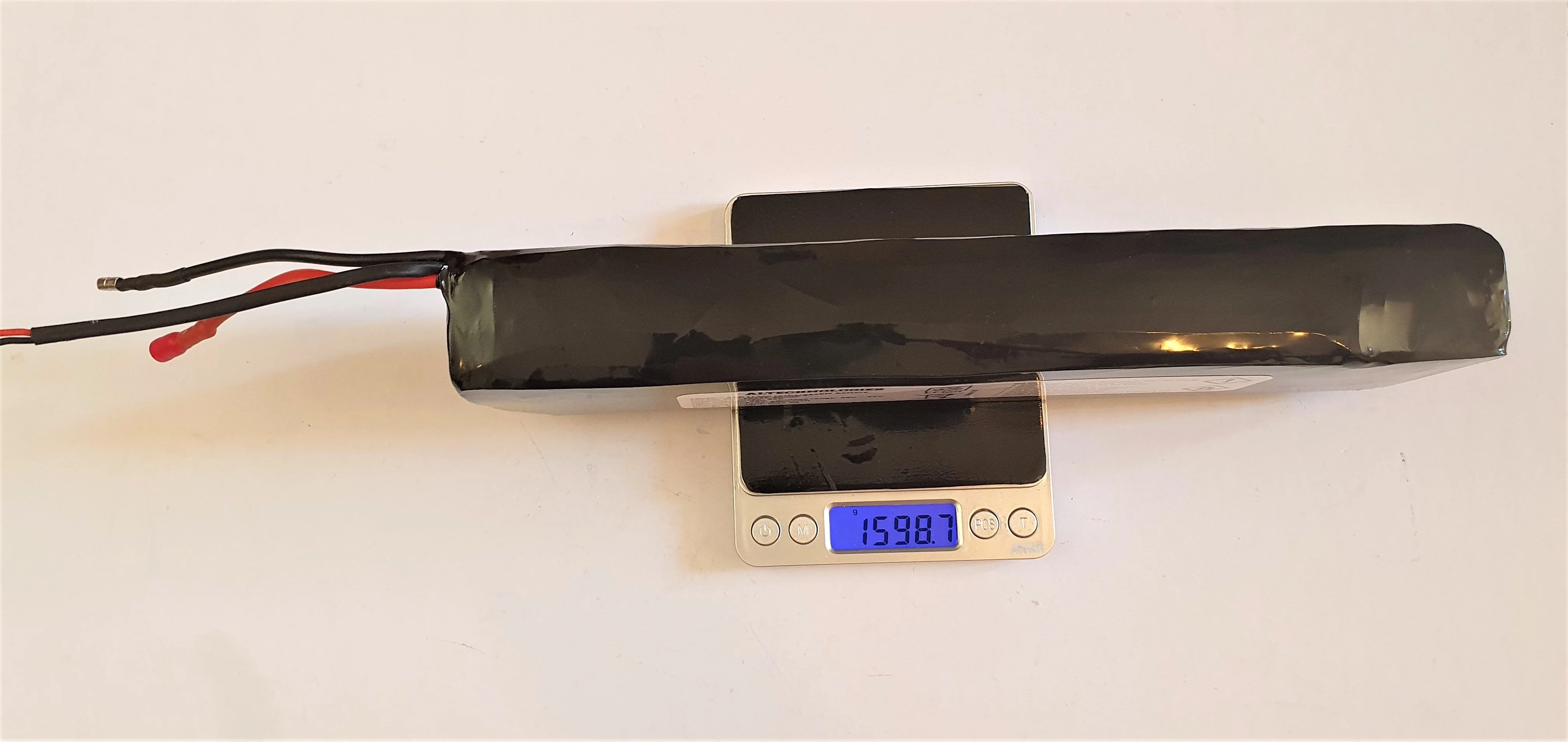

Weight: 1600g




Application

Suitable for less than 600W all 36V DC equipment. E-bike, scooters, etc.


Warning:

Batteries are dangerous products. Before purchasing, please make sure that you understand the relevant knowledge of the lithium battery, and you can safely complete the installation of the battery pack or have a professional assist in the installation. Improper operation may cause safety accidents, such as fire, explosion or equipment damage etc.. Please take all necessary precautions when using the battery.
$54.00

Original: $180.00

-70%
Fiido D1 D2 ebike 36V 7.5Ah replacement lithium battery li-ion—

$180.00

$54.00
