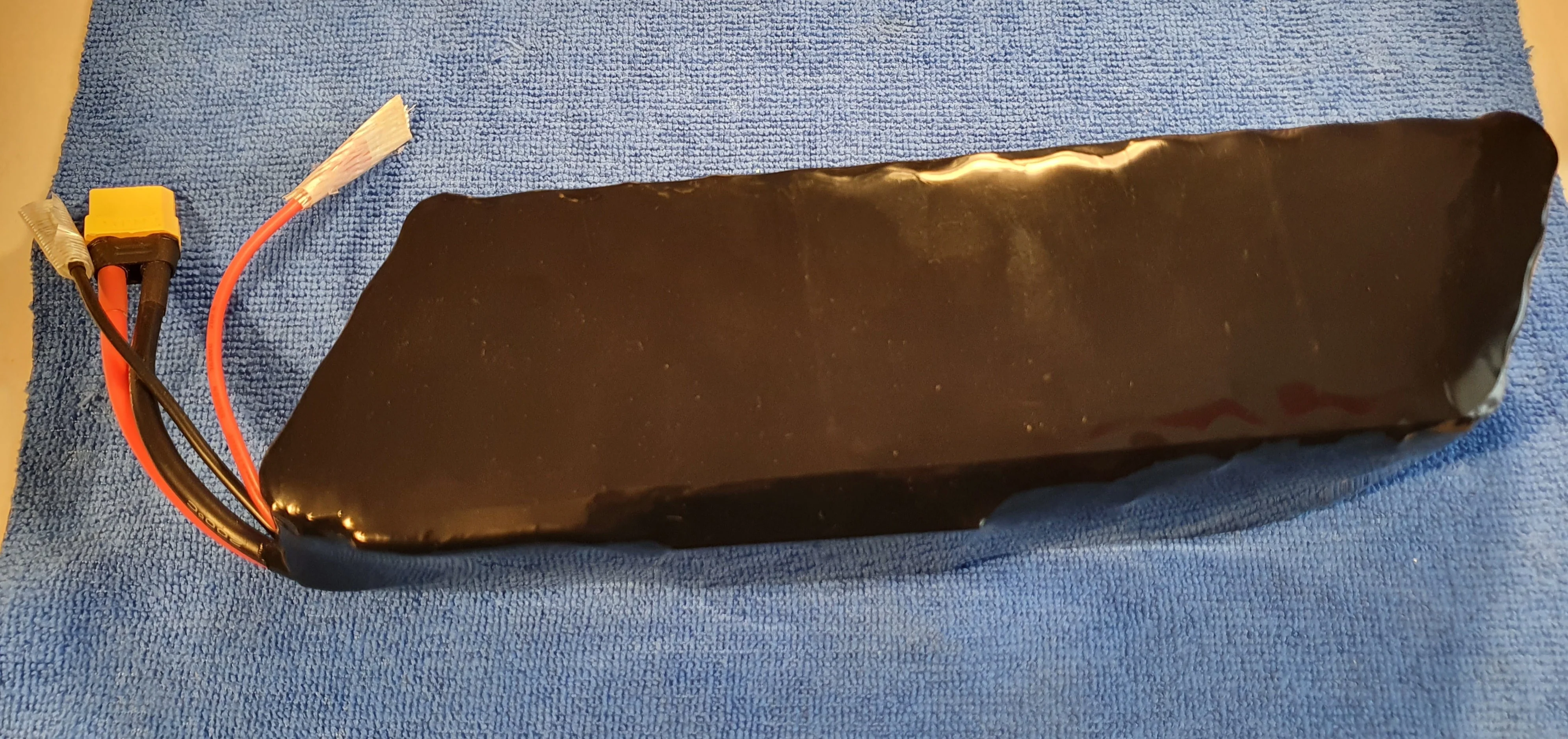

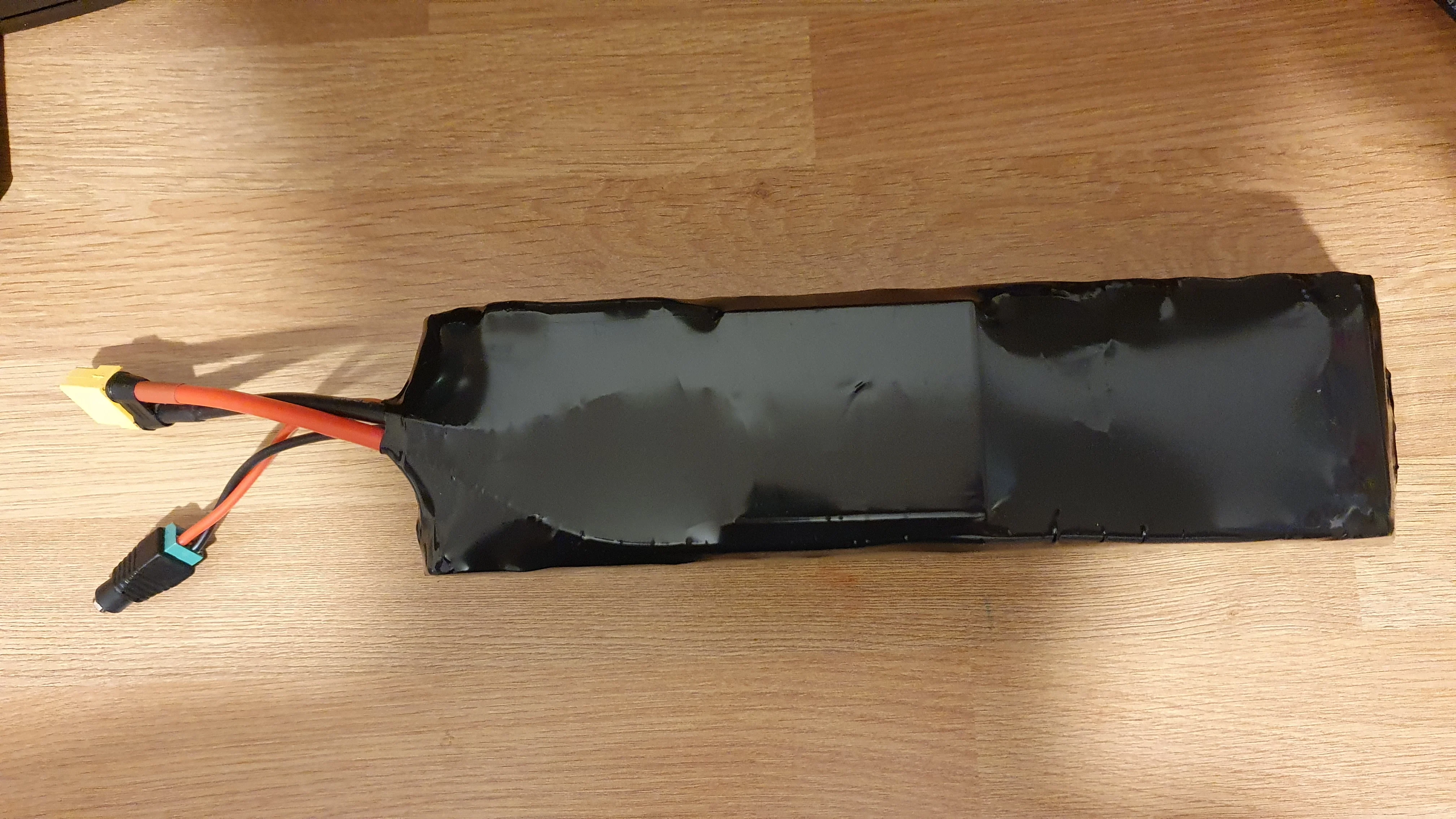

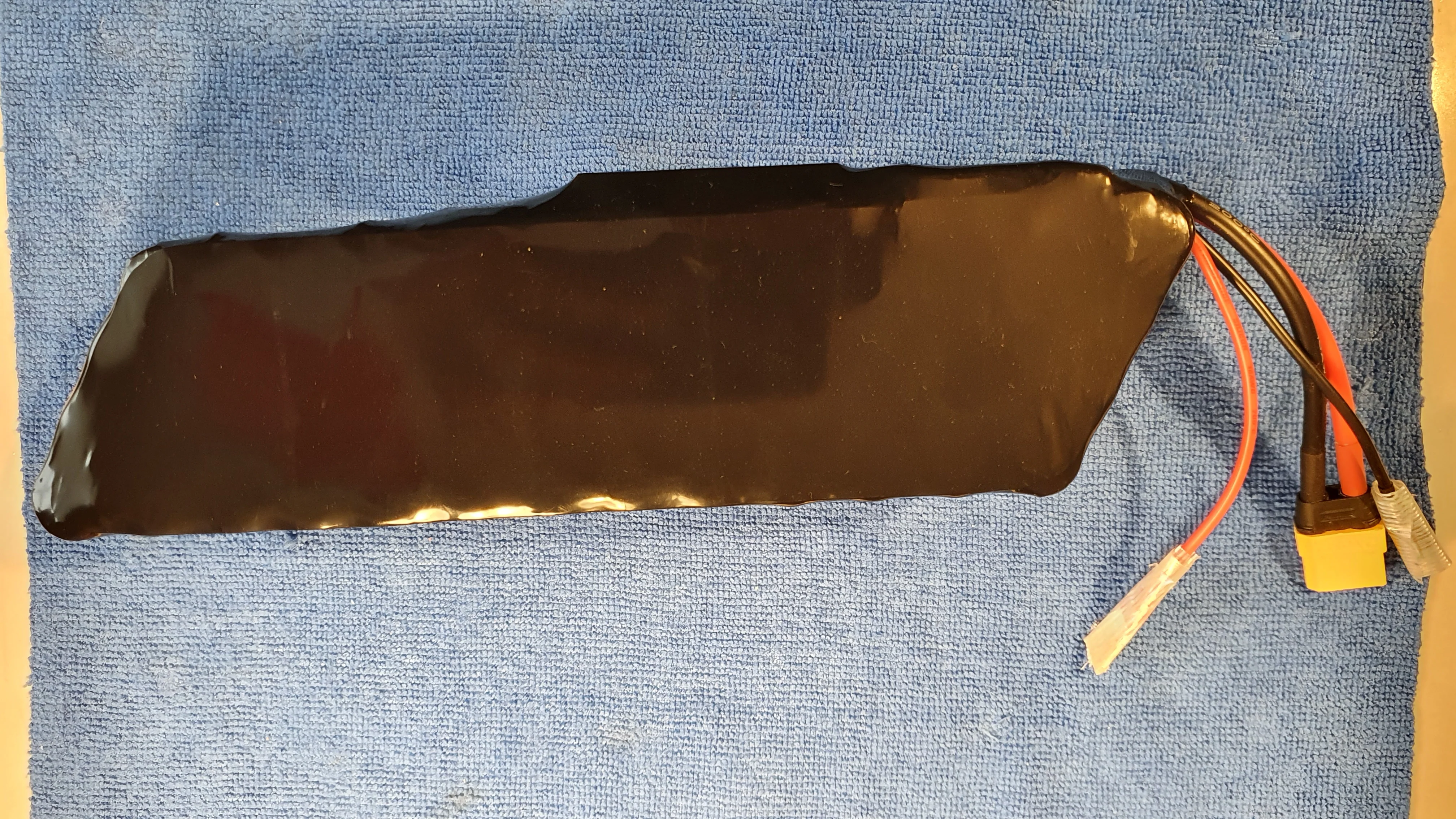

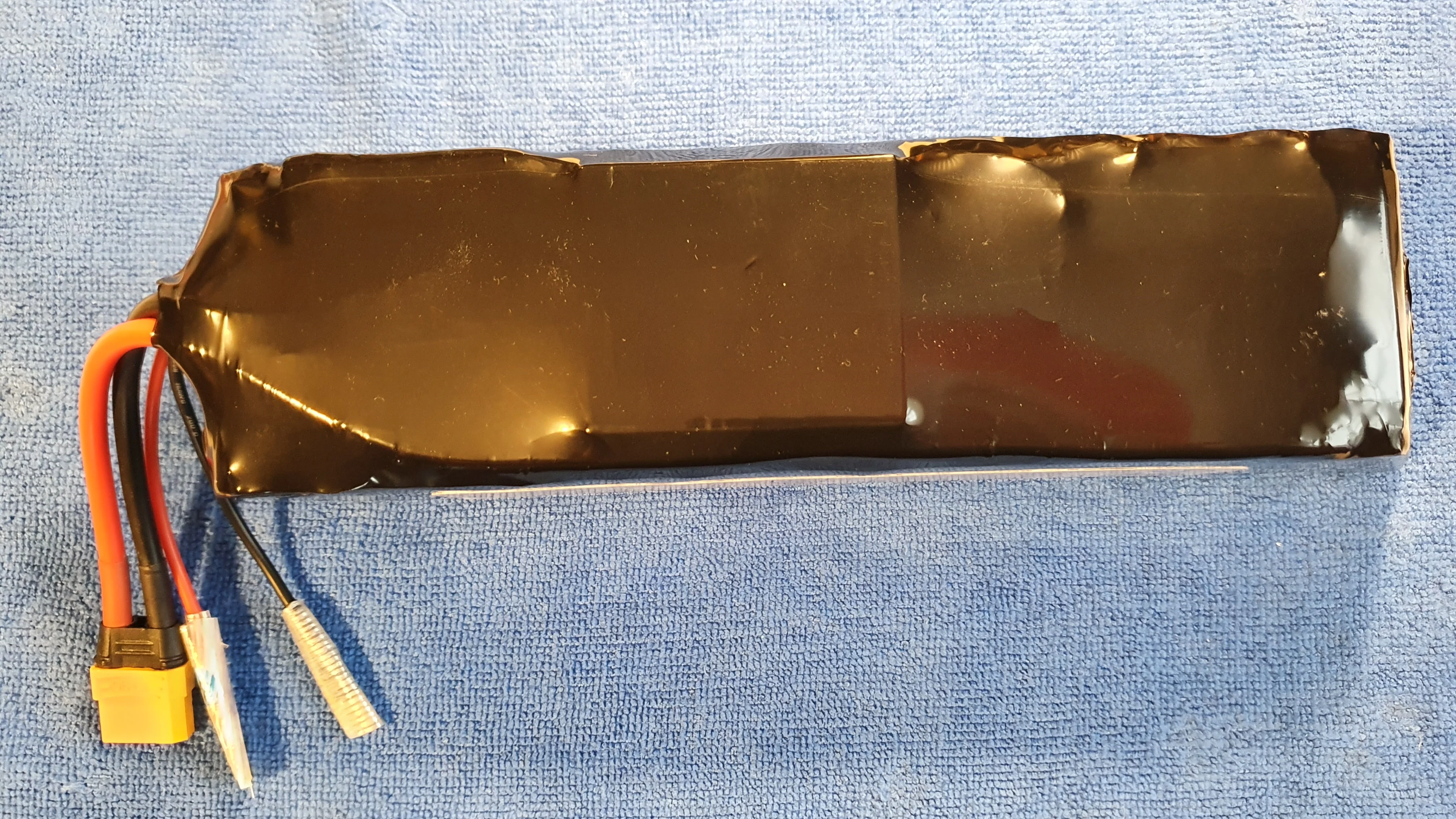

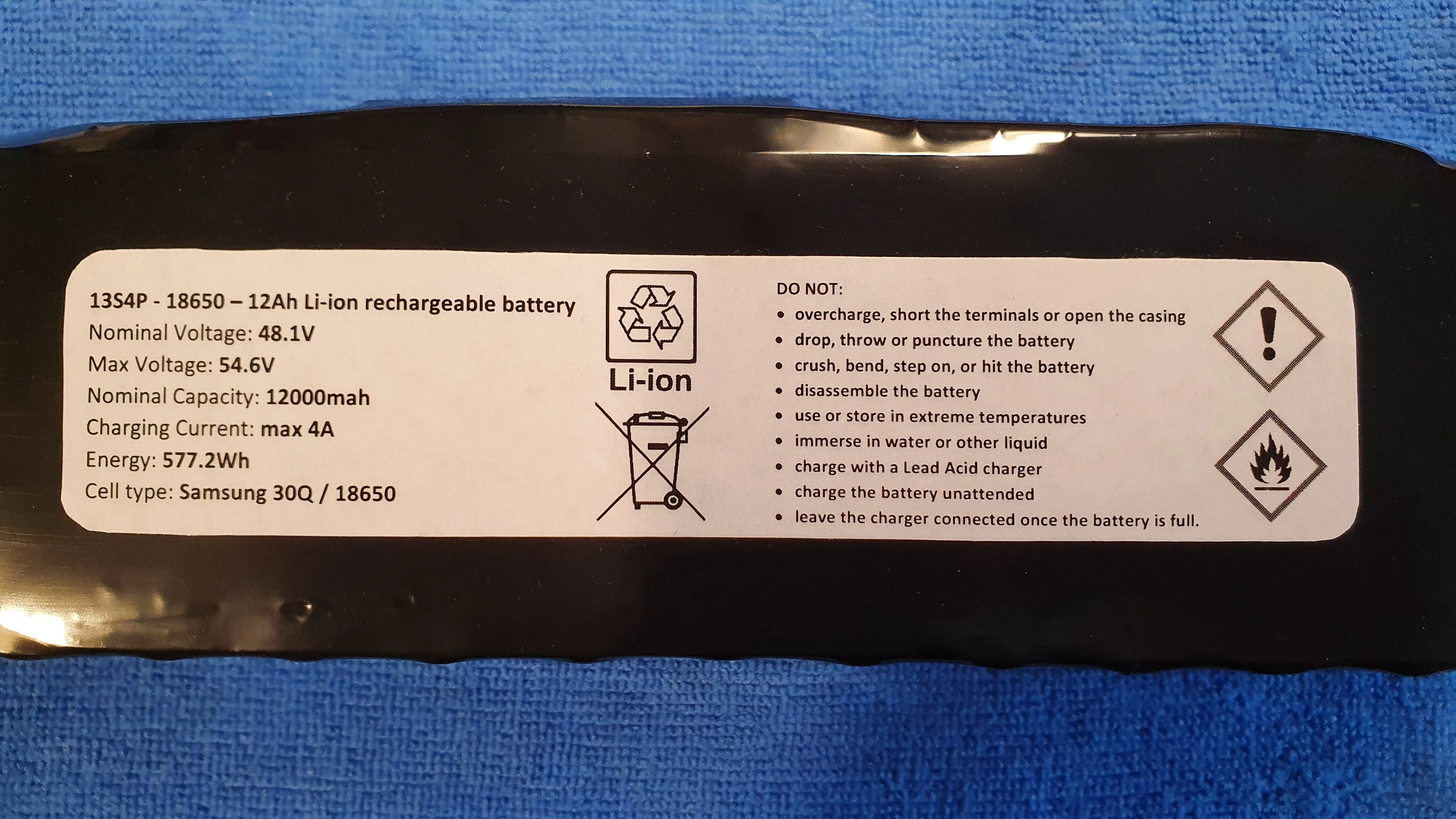

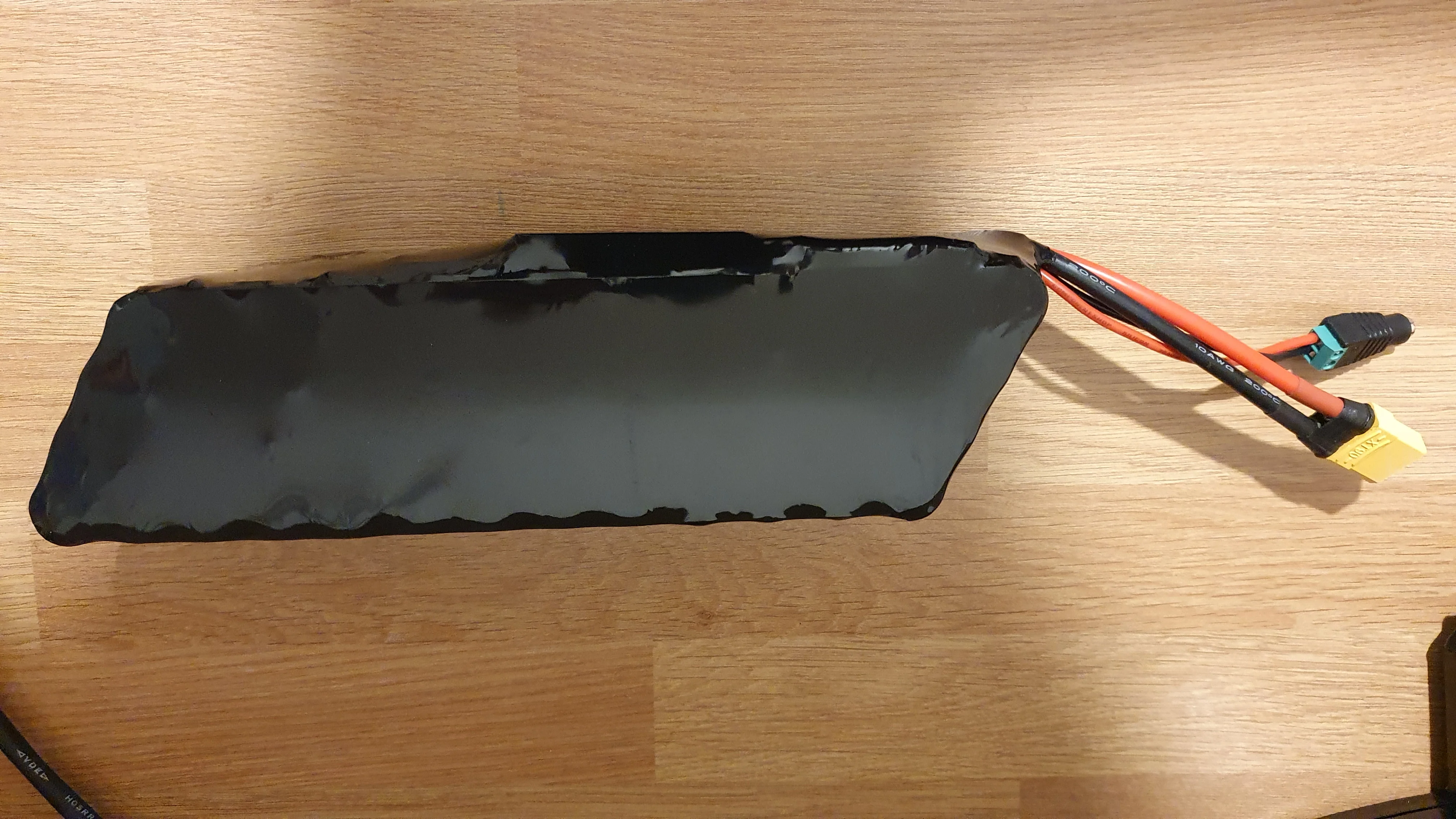

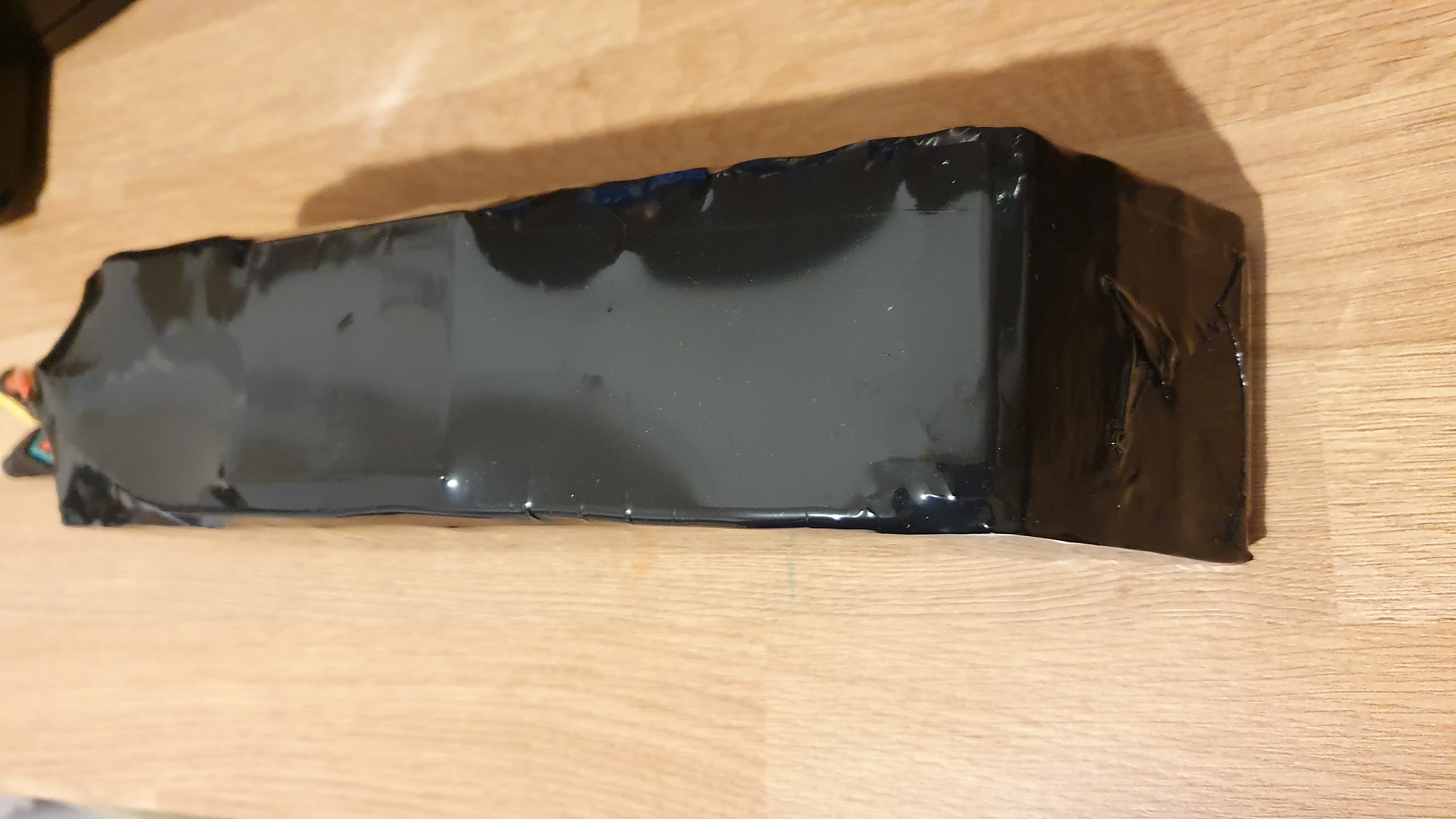

48V 10Ah 12Ah 14Ah 13S4P Li-ion Battery Pack Electric Bike, Scooter, eBike, EV 52V

Battery Model: ALT-13S4P

Rated capacity (ah): 10Ah ; 12Ah ; 14Ah

Nominal voltage (V): 48V

Energy: 480Wh ; 576Wh ; 672Wh

Technical description: 3.7 V  li-ion   52pcs  18650

Cell combination: 13-series 4-parallel

Battery size: approx 245*70*70mm

Number of cells (series*parallel): 52pcs  (13*4).  - genuine Samsung 18650 cells

Low voltage (V): 42 V

Charge voltage (V): 54.6V

Built in 40A BMS with balance function, over-discharge, overcharge protection, temperature sensor

Rated discharge current (a): 40а

Instantaneous maximum discharge current (a): 60A  (1-2s)

Maximum Continuous Discharge Current (A): 40a

Battery weight: about 2.7kg

Fibreglass case around the battery pack

.

*The shape of the battery can be customised.

* BMS can be upgraded to higher power

*Connectors can be XT60, XT90, XLR 3 Pin, or any other specified by the customer.

*Lead time / dispatch time is 6 to 10 working days.
