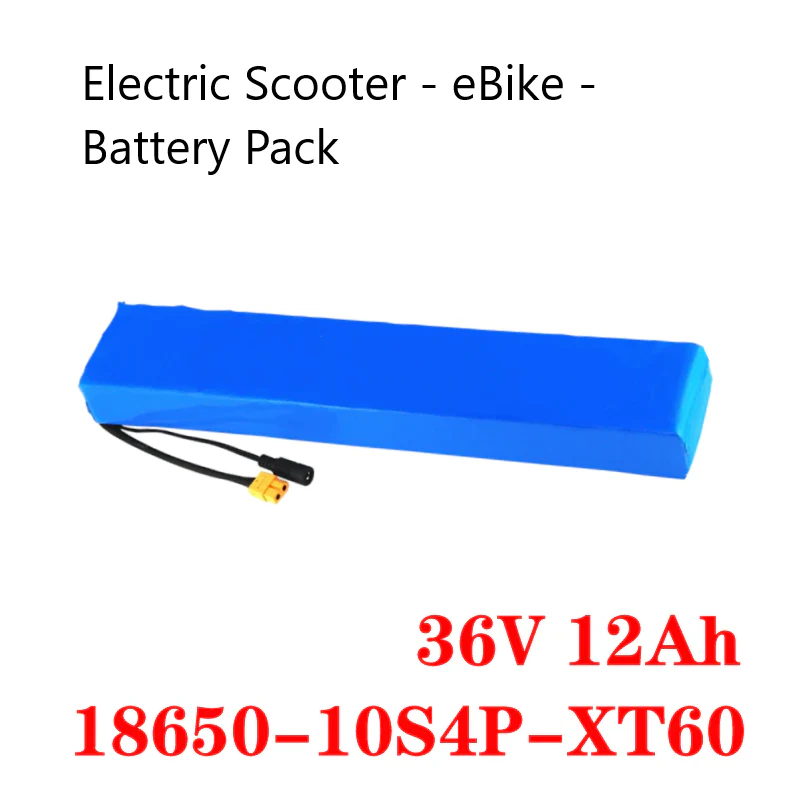

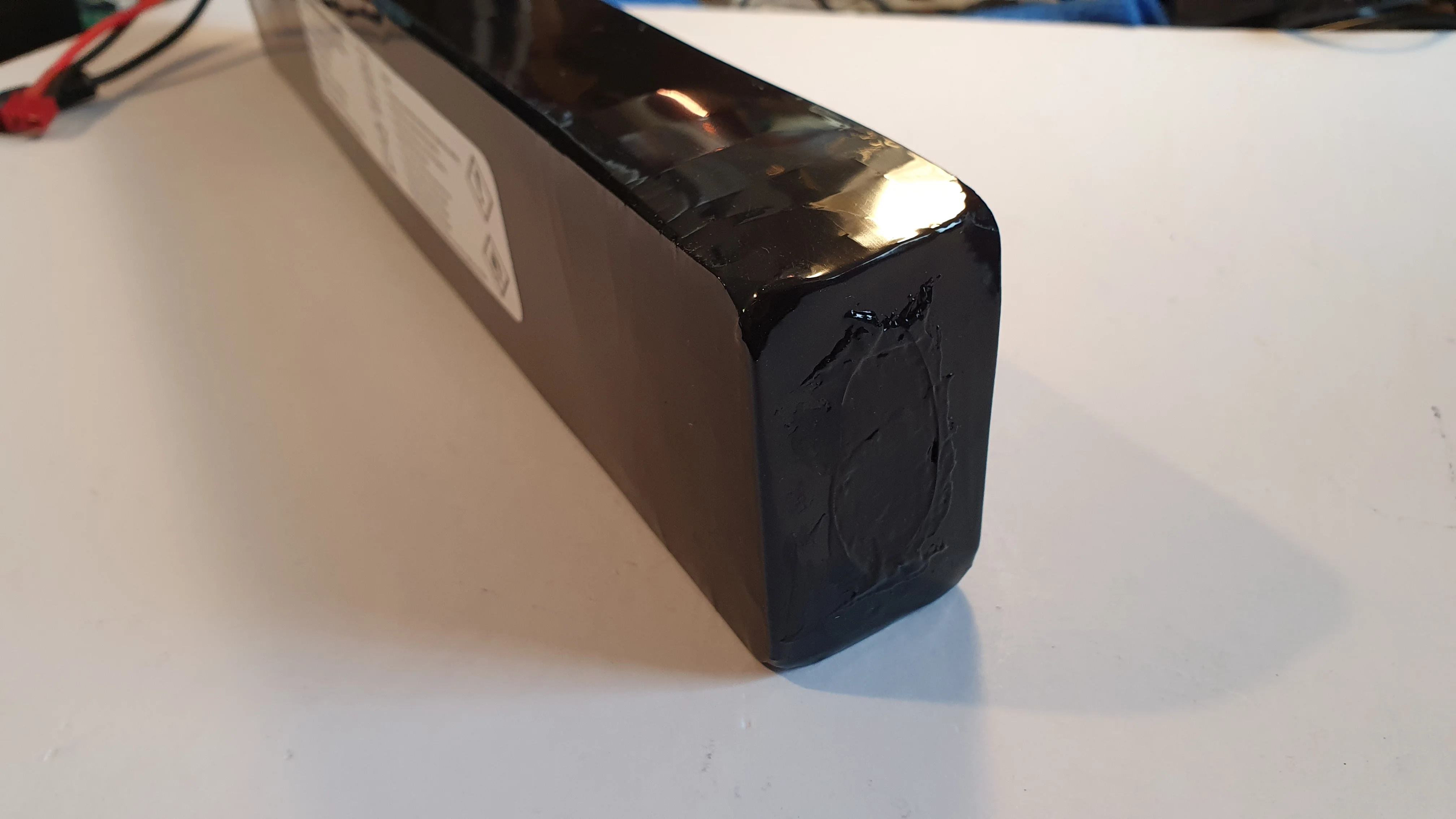

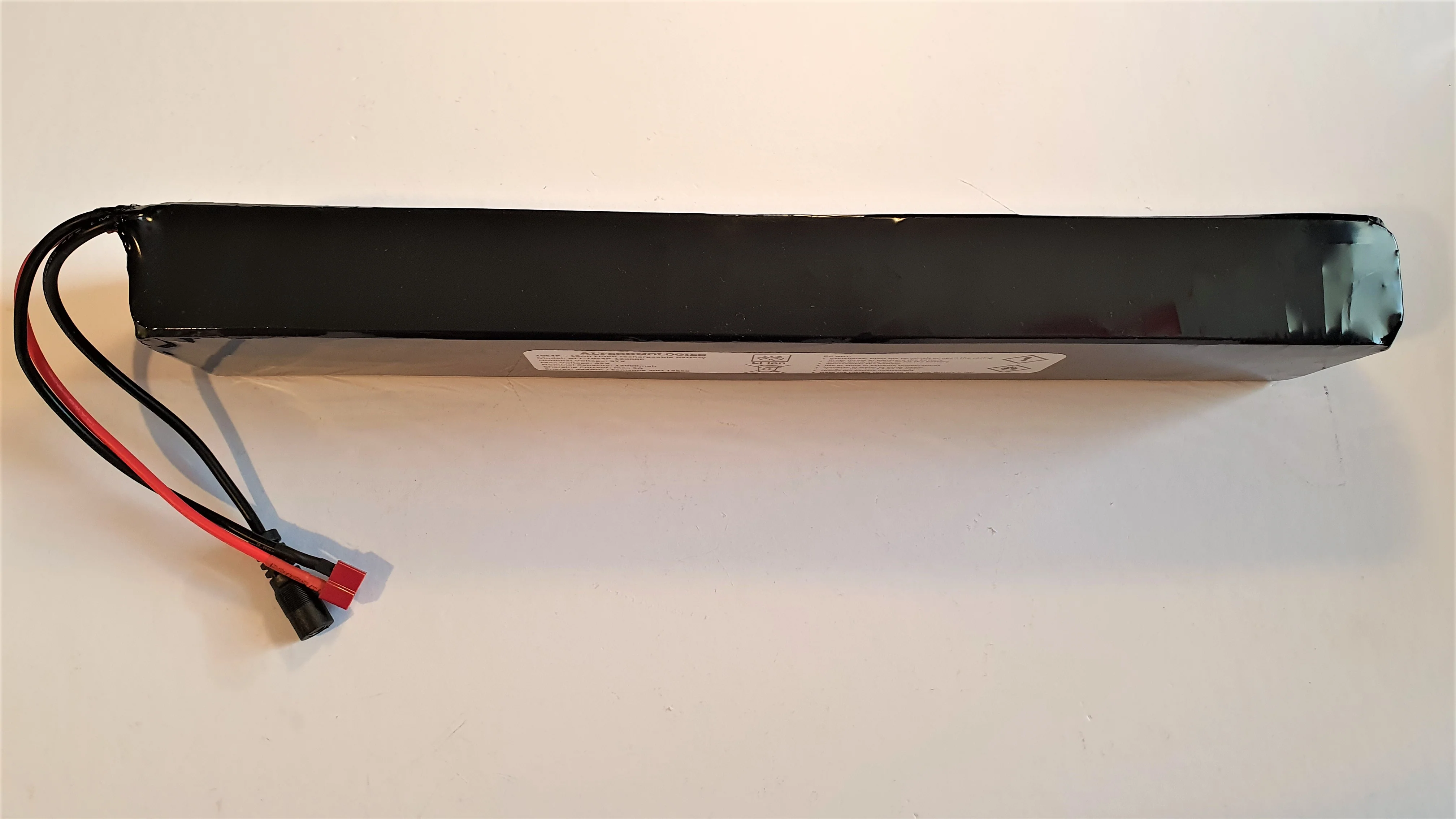

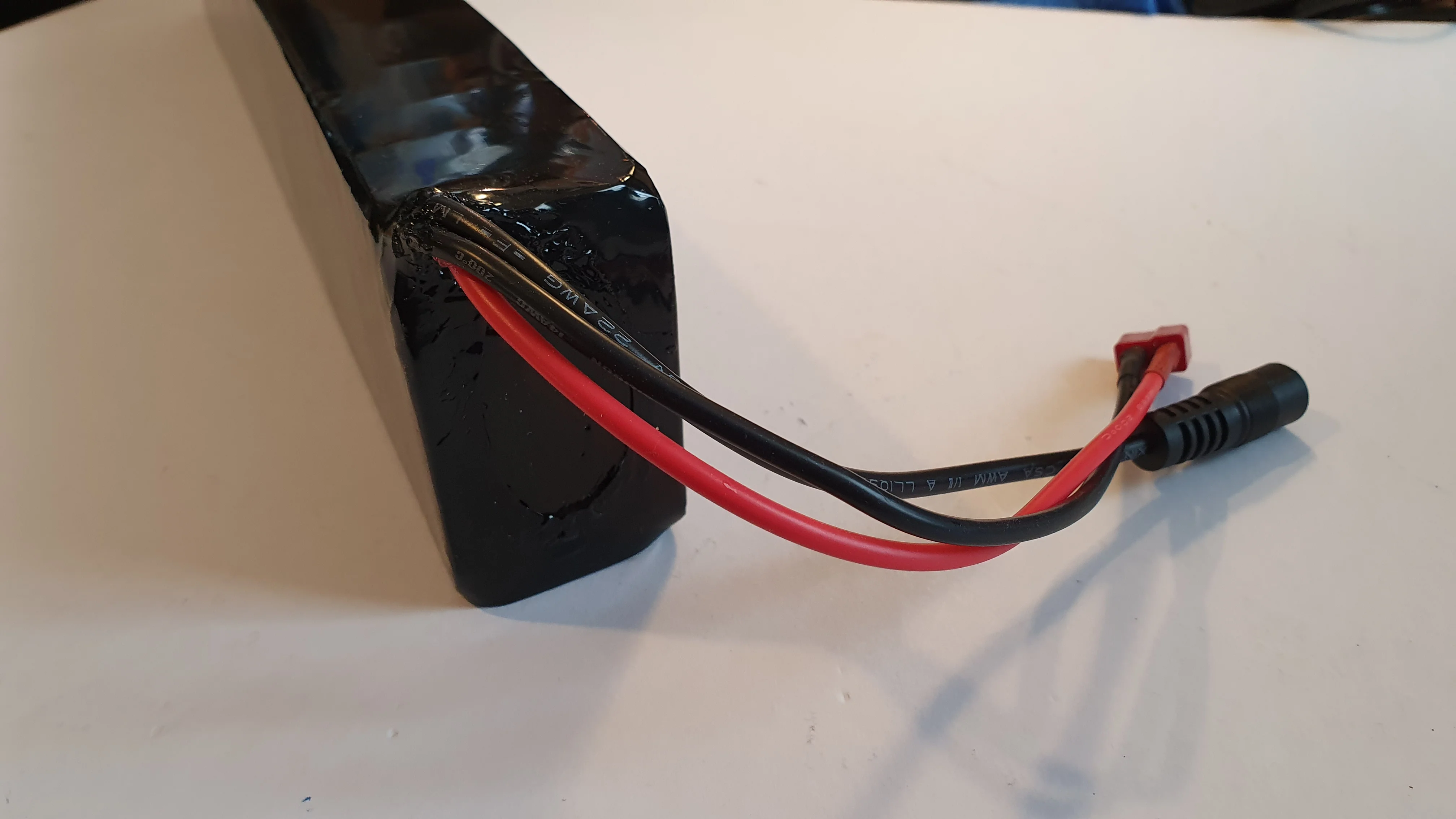

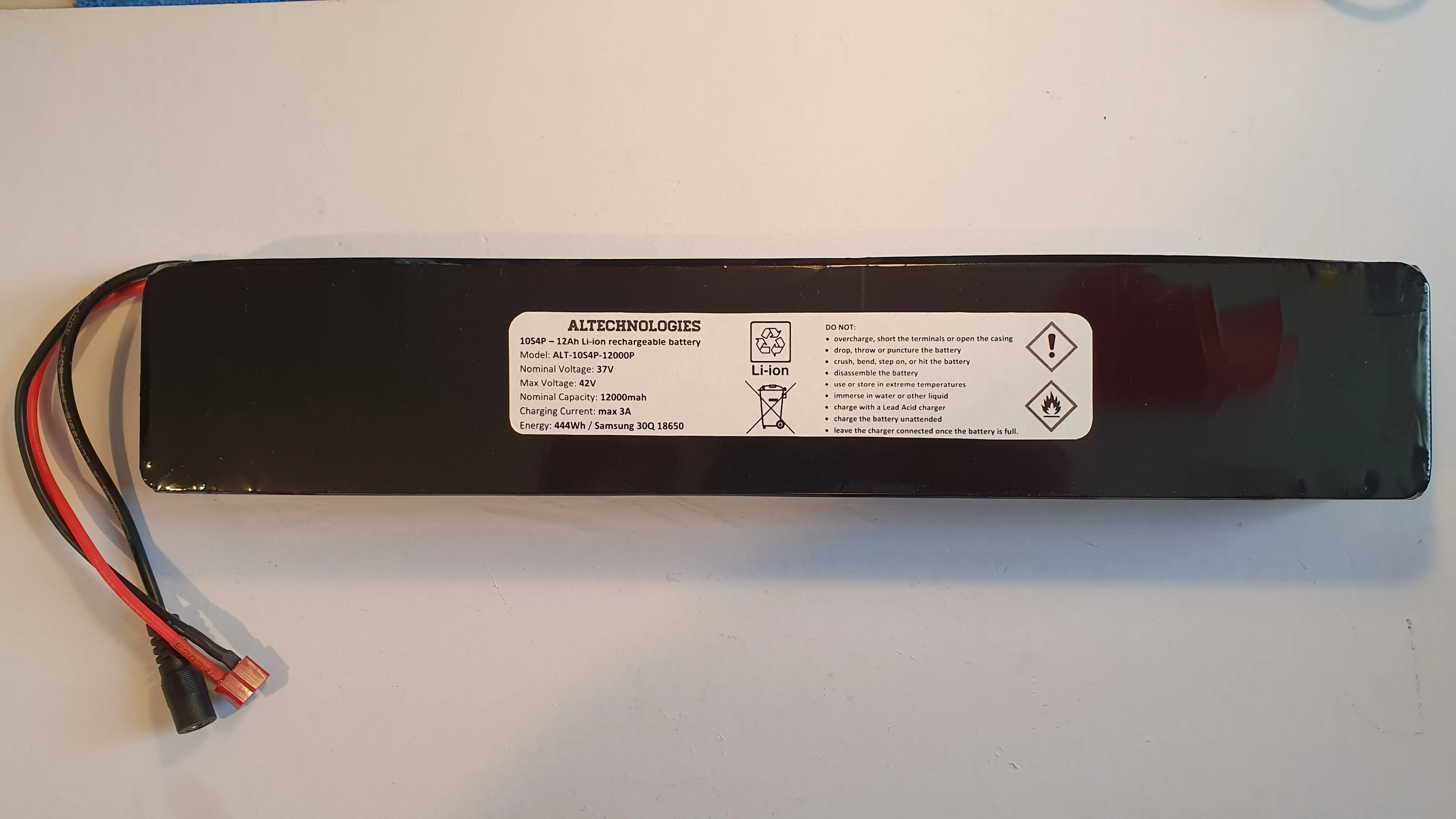

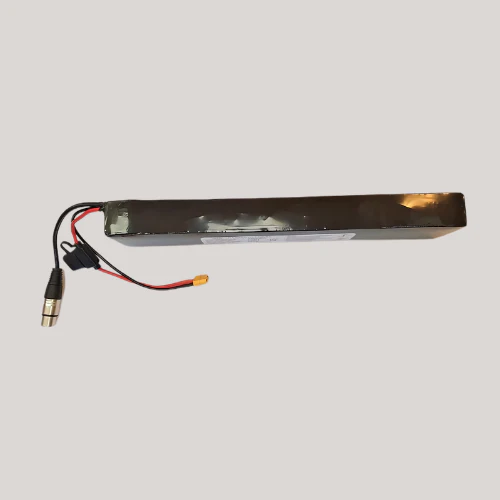

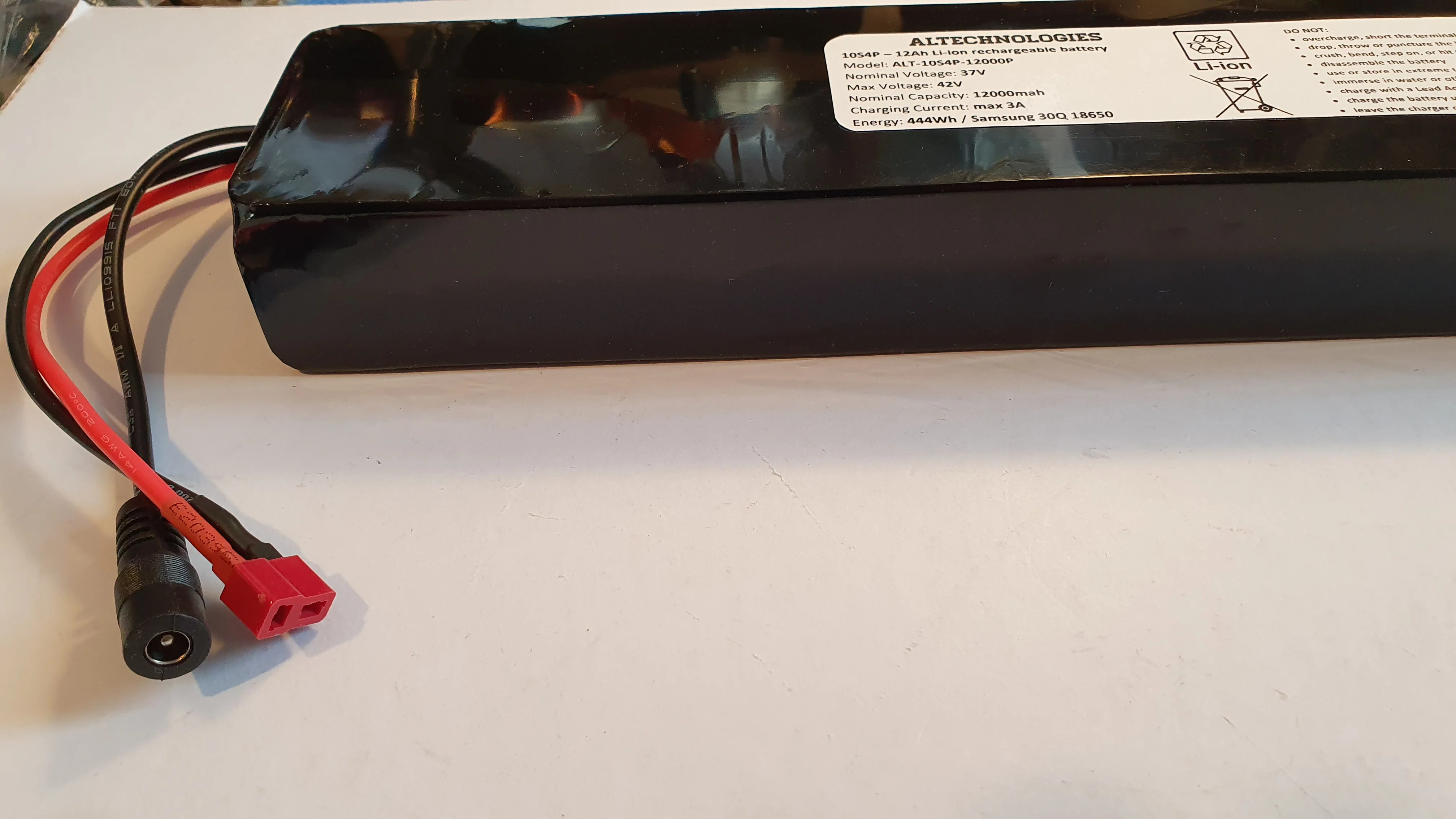

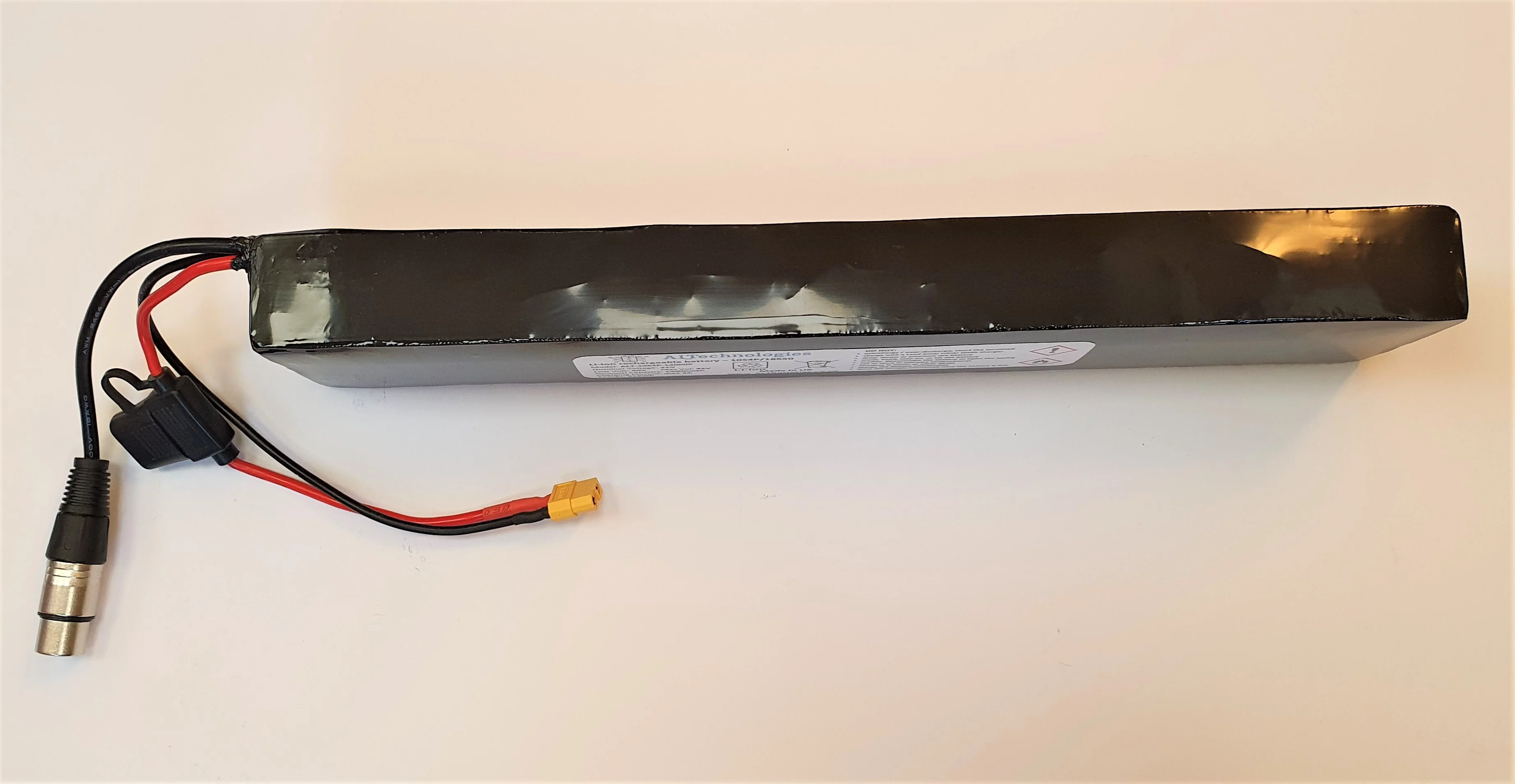

Electric Scooter / eBike Battery Pack Li-ion 36V / 42V 12Ah - 10S4P

Battery Model: ALT-10S4P-12000P

Rated capacity (ah): 12ah

Rated voltage (V): 36 V

Technical description: 3.7 V 40x 18650

Cell combination: 10-series 4-parallel

Battery size: 380*40*70mm

Number of cells (parallel * series): 40 pcs. Samsung 30Q - 3000mAh

Discharge voltage (V): 30 +/- 1 V

Charge voltage (V): 42 V

Built in 30A BMS with balance function, over-discharge, overcharge protection.

Rated discharge current (a): 15а

Instantaneous maximum discharge current (a): 30A

Maximum Continuous Discharge Current (A): 15a

Battery weight: about 2kg
